1、Index parameter：
Temperature: Rt - 1120 degrees centigrade
Atmosphere: air / nitrogen / hydrogen / other inert gases
Control temperature area: 5-16 temperature zones
Furnace height: 50 - 100mm
Temperature zone length: 300/450/600mm
Net band width: 150-800mm
2、Progressiveness：
1. The design of FLUENT fluid dynamics simulation software for advanced atmosphere and temperature field can effectively guarantee the temperature uniformity of + 2 C.
2. Combination of multiple intake modes, combined with multi stage steady pressure air intake technology, ensures stable atmosphere and dew point control, and is not affected by gas source fluctuation.
3. Through the unique furnace structure design, the cooling rate can be controlled, the internal stress of the product is reduced, and the vitreous rupture is prevented.

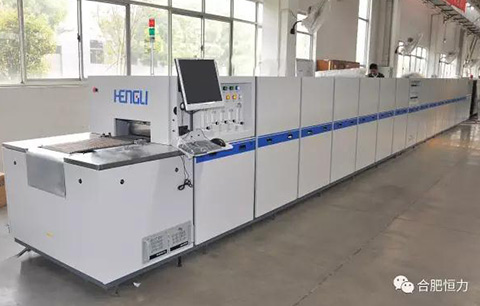

3、Detail display
